Optimover V3 Remote Control Jockey Wheel

Optimover V3 Remote Control Jockey Wheel

$2,625.00

Move any caravan, boat or trailer up to 3500kg

Add to cart
Optimover Carry & Storage Bag

Optimover Carry & Storage Bag

$140.00

Thickly padded storage bag on wheels to protect, store and move your Optimover

Add to cart

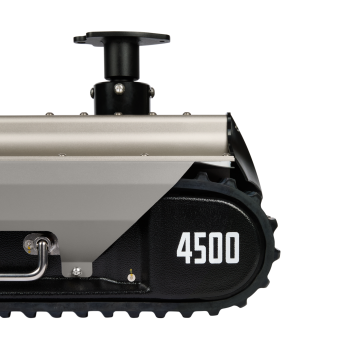

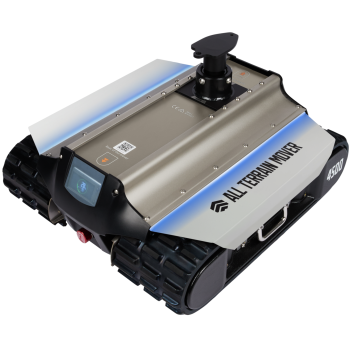

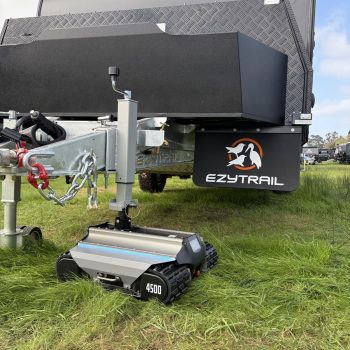

All Terrain Caravan Mover 4500kg

All Terrain Caravan Mover 4500kg

Price range: $5,400.00 through $5,450.00

Move vans, boats and trailers up to 4500kg off-road and up moderate inclines.

Pre-order
This product has multiple variants. The options may be chosen on the product page

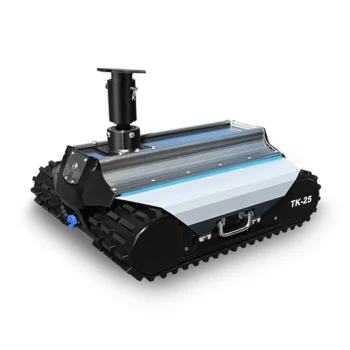

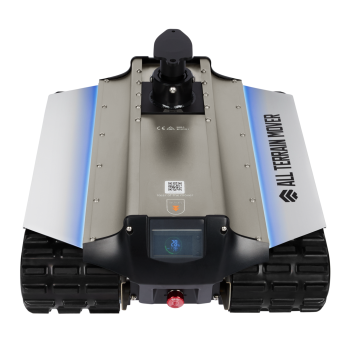

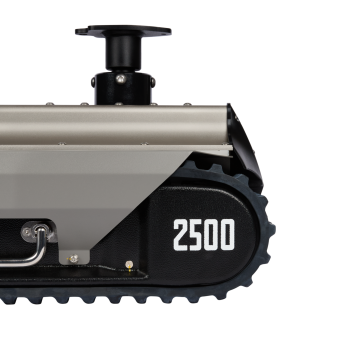

All Terrain Caravan Mover 2500kg

All Terrain Caravan Mover 2500kg

Price range: $4,500.00 through $4,550.00

Move vans, boats and trailers up to 2500kg off-road and up moderate inclines

Add to cart
This product has multiple variants. The options may be chosen on the product page
OW15 Compact Double Clamp Bracket – 150mm

OW15 Compact Double Clamp Bracket – 150mm

$180.00

To fit drawbar 150mm high x 50mm wide

Add to cart
OW14 Compact Double Clamp Bracket – 100mm to 130mm

OW14 Compact Double Clamp Bracket – 100mm to 130mm

$180.00

To fit drawbar between 100 and 130mm high x 50mm wide

Add to cart
OW6 Double Clamp Bracket – 150mm

OW6 Double Clamp Bracket – 150mm

$160.00

To fit drawbar 150mm high and any width up to 150mm

Add to cart
OW7 Double Clamp Bracket – 100mm

OW7 Double Clamp Bracket – 100mm

$160.00

To fit drawbar 100mm high and any width up to 100mm

Add to cart
OW8 Double Clamp Bracket – 130mm

OW8 Double Clamp Bracket – 130mm

$160.00

To fit drawbar 130mm high and any width up to 130mm

Add to cart
OW5 Double Clamp Bracket – 75mm

OW5 Double Clamp Bracket – 75mm

$160.00

To fit drawbar 75mm high and any width up to 75mm

Add to cart

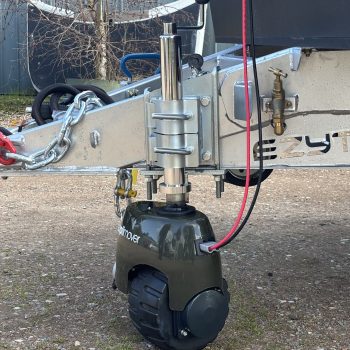

OW20 Gooseneck Chassis Double Clamp Bracket

OW20 Gooseneck Chassis Double Clamp Bracket

$285.00

The solution for gooseneck drawbars, commonly found on Zone RV and particular Ezy Trail and Snowy River vans

Add to cart
This product has multiple variants. The options may be chosen on the product page
OW19 Offset Double Clamp Bracket – 100 or 150mm

OW19 Offset Double Clamp Bracket – 100 or 150mm

$245.00

The solution for when your drawbar is higher or lower than Optimover's operating height

Add to cart
OW18 ALKO Chassis Double Clamp Bracket

OW18 ALKO Chassis Double Clamp Bracket

$180.00

To fit European and UK Vans that use an Alko chassis

Add to cart
All Terrain - Standard Mounting Bracket

All Terrain – Standard Mounting Bracket

$440.00

Mounting bracket to fit rectangle drawbars 50mm wide

Add to cart
All Terrain - Universal Mounting Bracket

All Terrain – Universal Mounting Bracket

$490.00

Mounting bracket to fit rectangle drawbars various widths; 50mm, 75mm, 100mm and 130mm

Add to cart

Clamp Size Guide

Optitec recommends a heavy duty double clamp for moving trailers and caravans over 1500kg.   There are numerous clamps available to fit different size drawbars.

Finding your perfect clamp:

Step 1.  Locate the best position on your drawbar to place the bracket; the Optimover is effective anywhere on the front drawbar where space allows.

Step 2.  Measure the drawbar  height.

Step 3.  Measure the drawbar width.

Step 4.  Use the size guide below to select your bracket.



To Fit

Clamp Dimensions

Additional Notes

Clamp

Name

Drawbar Height (mm)

DrawbarWidth (mm)

Total Width
(mm)

Front Plate height x width
(mm)

Width between U-bolts (mm)



OW-15

Large Compact Duel Clamp 150mm

150

50

160

150 x 140

140

Most common fit for caravans

OW-14

Small Compact Duel Clamp 100mm

100 to 130

50

160

150 x 140

140

Most Jayco caravans (not the all-terrain)

OW-6

Large Duel Clamp 150mm

150

50-150

237

200 x 237

195

Alternative to OW15 where drawbar width is larger than 50mm.

U-bolts from the back fit better.

OW-7

Small Duel Clamp 100mm

100

50-100

237

170 x 237

195

Ideal for boats (can go back-to-back with existing jockey wheel)

OW-8

Medium Duel Clamp 130mm

130

50-130

237

200 x 237

195

Ideal for boats (can go back-to-back with existing jockey wheel)

OW21

X Small Duel Clamp 75mm

75

50-75

237

170 x 237

195

Ideal for boats (can go back-to-back with existing jockey wheel)

OW-18

Double Clamp Brack ALKO

NA

NA



150 x 140

NA

European & UK vans that use an Alko Chassis

OW-19

Optitec Offset Double Clamp

100 or 150

50-150



200 x 237


(150 mm plate)


170 x 237

(100 mm plate)

195

Used to get higher or lower (ie. in a carport)

Raise or lower by 150mm

Can be fitted to 150mm depth or 100mm depth

OW20

Zone RV Dual clamp



TBC
