OW-5

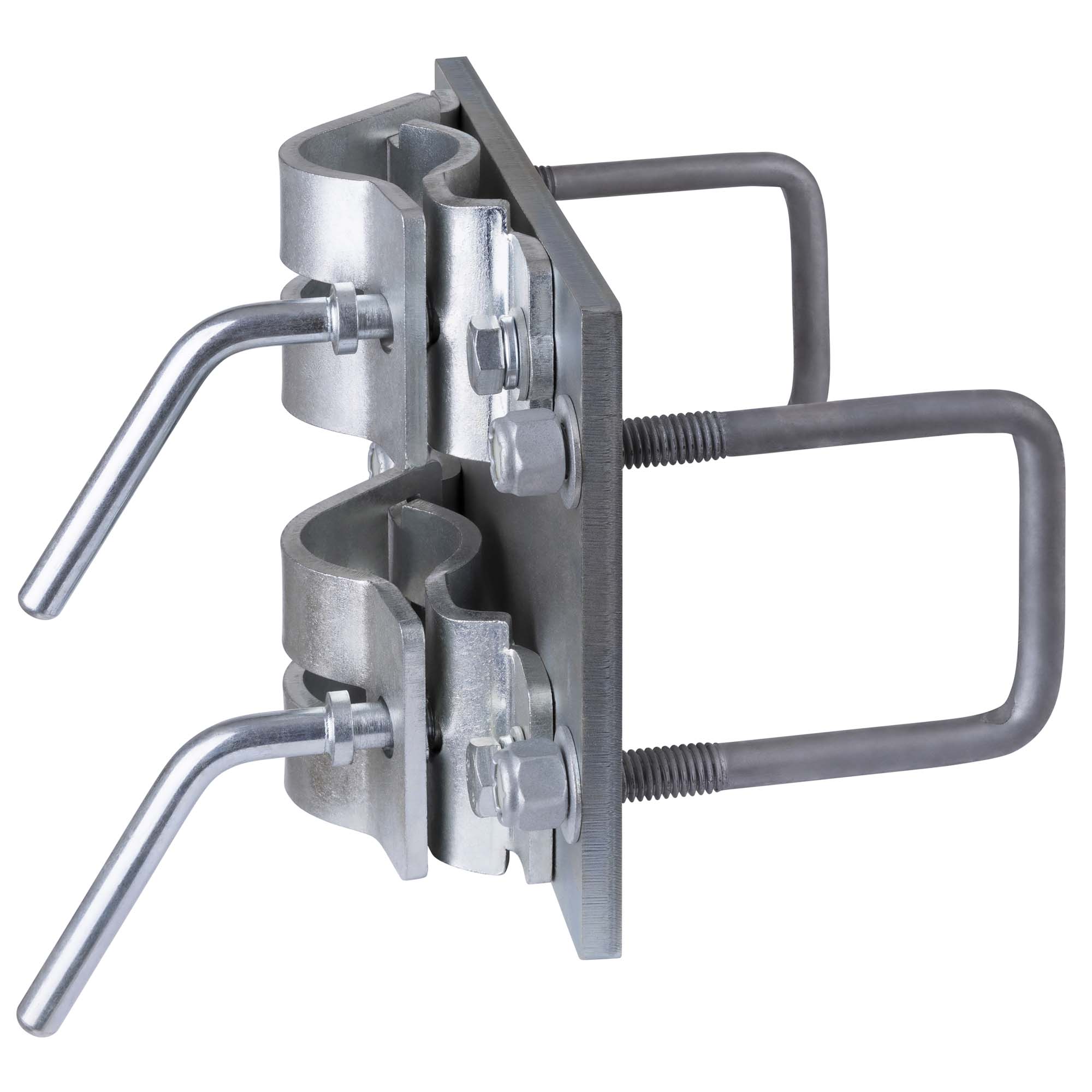

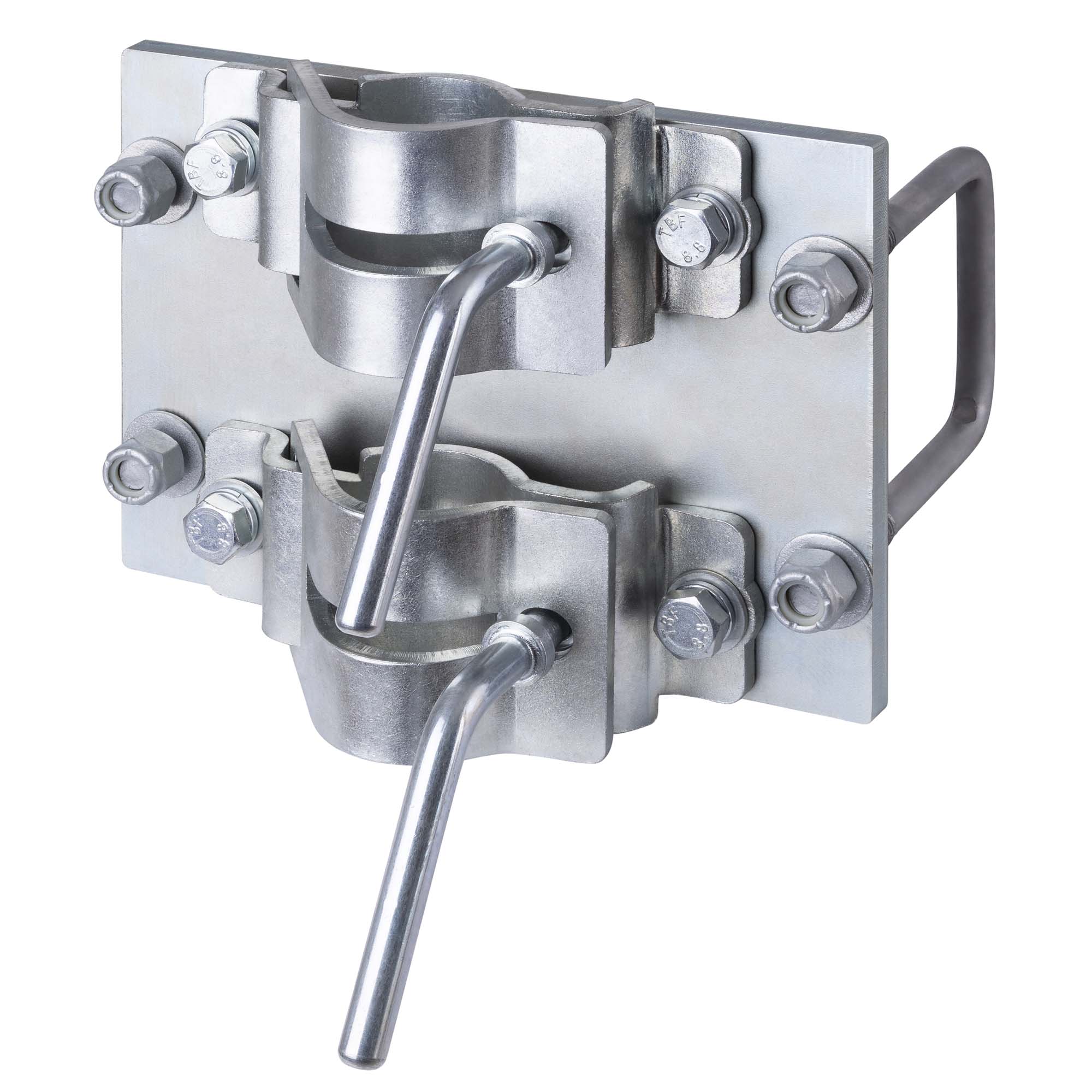

OW5 Double Clamp Bracket – 75mm

$160.00

Heavy Duty Double Clamp to fit drawbar 75mm high and any width up to 75mm
Ideal for many boat trailers

  • Secure the Optimover to maximise performance when moving trailers over 1500kg
  • Can be fitted anywhere on the front drawbar
  • U-bolts connecting from the rear, no welding required

Made to fit:

  • Drawbar height: 75mm
  • Drawbar width: Between 50mm to 75mm

Dimensions of Clamp:

  • 235mm width
  • 170mm height
  • 195mm width between U-bolts
Free Shipping
3 Year Warranty
Australian Engineered

Testimonials

Hear from Happy Movers

Ken W
Ken W
Used our Optimover on our caravan for the first time on the weekend and it is an absolute game changer. No more pushing and rotating our van under our carport. Now it’s as easy as pressing buttons on a remote to rotate our van 180 degrees and then reverse it into place when we get home from trips. Can’t recommend this thing highly enough!! Quality engineering and manufacturing too, which is wonderful to see these days 👍🏼
stephan K.
stephan K.
amazing what this unit can do, i jacknife my 17ft van on a slope using it, great engineering andso simple
Ricky S.
Ricky S.
Very happy with our Optitec. First class from product to service and great guys too. Highly recommended 👌.
Jeff S.
Jeff S.
Optitec has a fantastic range of motorised jockey wheels and are extremely helpful in ensuring that you get the best result from your purchase. With numerous brackets and hardware to fit and suit your caravan the attachment to your van is made easy and effortless.I would highly recommend dealing with Optitec for your motorised jockey wheel needs.
js_loader

Clamp Size Guide

Optitec recommends a heavy duty double clamp for moving trailers and caravans over 1500kg.   There are numerous clamps available to fit different size drawbars.

Finding your perfect clamp:

Step 1.  Locate the best position on your drawbar to place the bracket; the Optimover is effective anywhere on the front drawbar where space allows.

Step 2.  Measure the drawbar  height.

Step 3.  Measure the drawbar width.

Step 4.  Use the size guide below to select your bracket.



To Fit

Clamp Dimensions

Additional Notes

Clamp

Name

Drawbar Height (mm)

DrawbarWidth (mm)

Total Width
(mm)

Front Plate height x width
(mm)

Width between U-bolts (mm)



OW-15

Large Compact Duel Clamp 150mm

150

50

160

150 x 140

140

Most common fit for caravans

OW-14

Small Compact Duel Clamp 100mm

100 to 130

50

160

150 x 140

140

Most Jayco caravans (not the all-terrain)

OW-6

Large Duel Clamp 150mm

150

50-150

237

200 x 237

195

Alternative to OW15 where drawbar width is larger than 50mm.

U-bolts from the back fit better.

OW-7

Small Duel Clamp 100mm

100

50-100

237

170 x 237

195

Ideal for boats (can go back-to-back with existing jockey wheel)

OW-8

Medium Duel Clamp 130mm

130

50-130

237

200 x 237

195

Ideal for boats (can go back-to-back with existing jockey wheel)

OW21

X Small Duel Clamp 75mm

75

50-75

237

170 x 237

195

Ideal for boats (can go back-to-back with existing jockey wheel)

OW-18

Double Clamp Brack ALKO

NA

NA



150 x 140

NA

European & UK vans that use an Alko Chassis

OW-19

Optitec Offset Double Clamp

100 or 150

50-150



200 x 237


(150 mm plate)


170 x 237

(100 mm plate)

195

Used to get higher or lower (ie. in a carport)

Raise or lower by 150mm

Can be fitted to 150mm depth or 100mm depth

OW20

Zone RV Dual clamp



TBC
