OW-7

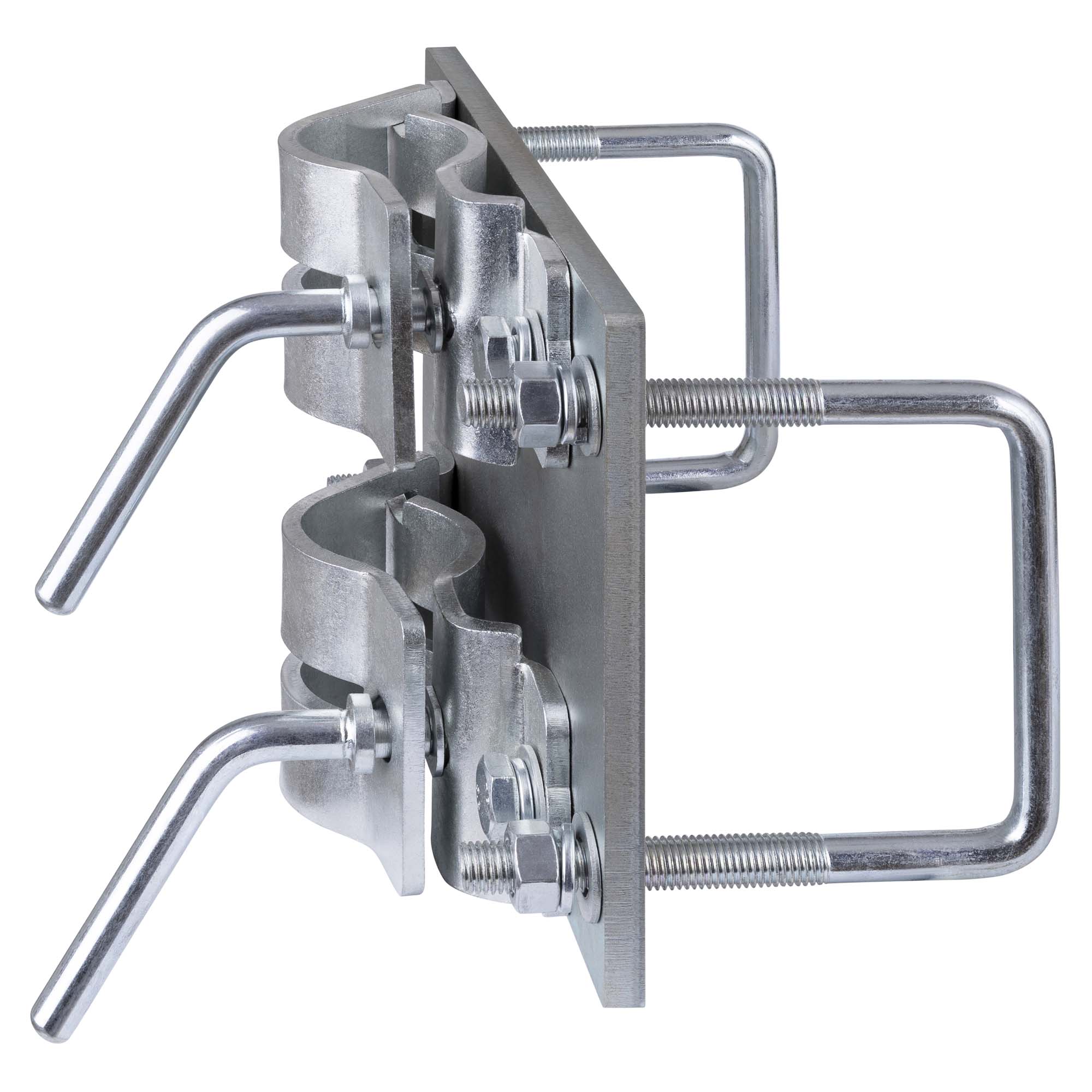

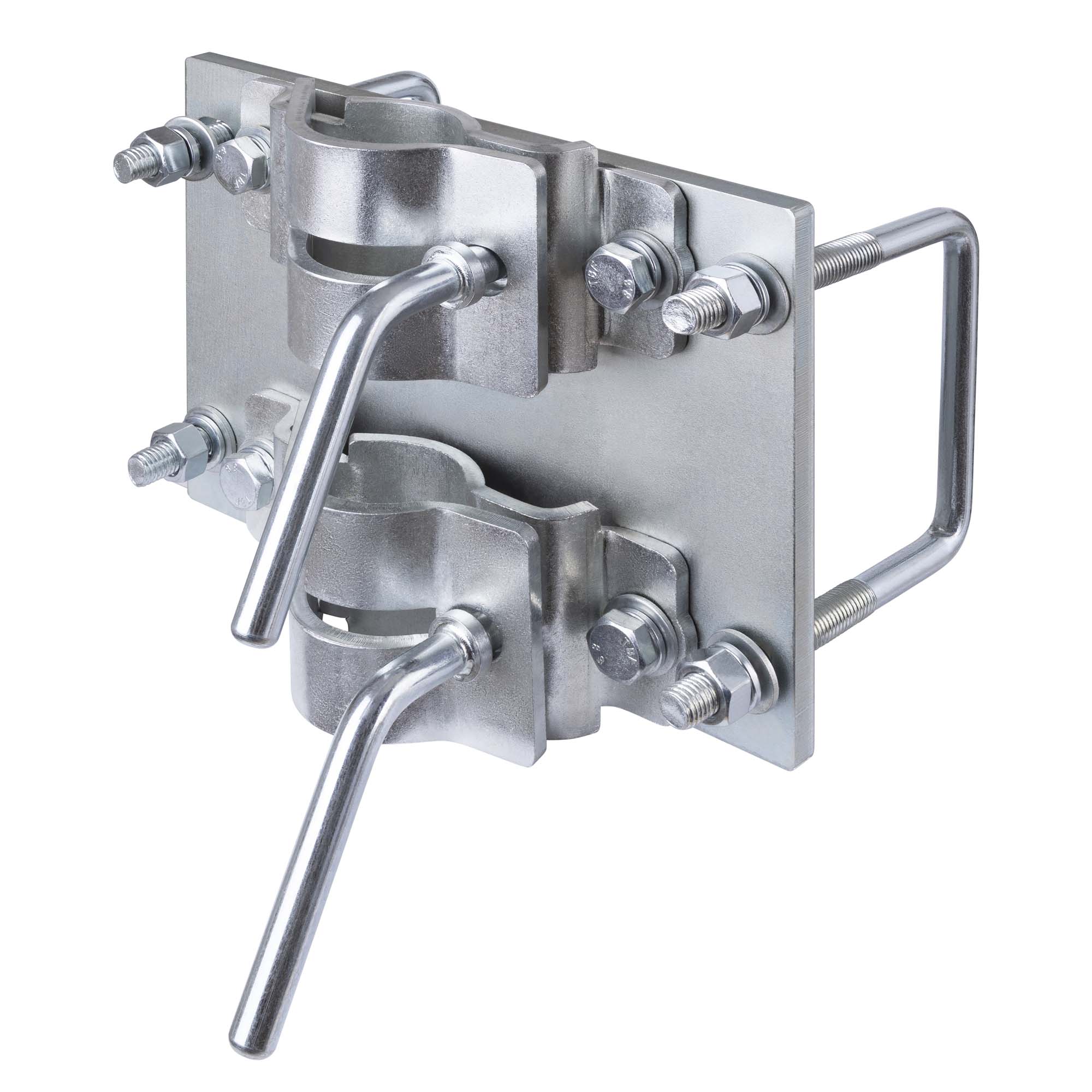

OW7 Double Clamp Bracket – 100mm

$160.00

Heavy Duty Double Clamp to secure the Optimover V3 to drawbars 100mm high and any width up to 100mm

Secure the Optimover to maximise performance when moving trailers over 1500kg
Can be fitted anywhere on the front drawbar
U-bolts connecting from the rear, no welding required
If your chassis width is 50mm you may prefer the compact OW-14 clamp

Made to fit:

Drawbar height: 100mm
Drawbar width: Between 50mm to 100mm

Dimensions of Clamp:

235mm width
170mm height
195mm width between U-bolts

Free Shipping

3 Year Warranty

Australian Engineered

Testimonials

Hear from Happy Movers

Wendy D.

We purchased the Optitec mover 3 yesterday at the Brisbane caravan show for our Ezytrail Ceduna MK3. Our gradient is up to 5 degrees. We manoeuvred our van in and out with ease. Highly recommend. Thanks Rich

John Whittles (.

My 12 year-old Opti tech needed replacement spare parts. The gentleman I spoke to was extremely courteous. The parts arrived in a starting really quick timeframe and the price was quite reasonable.

Marianne

Our Optitec is fantastic. Without it we would not be able to store our van at home. Easy to use and the follow up advice and help is always available. Their support and after-purchase help is happily given. So glad we purchased one.

Steve H.

Great product, excellent service and quick delivery.

		To Fit		Clamp Dimensions			Additional Notes
Clamp	Name	Drawbar Height (mm)	DrawbarWidth (mm)	Total Width (mm)	Front Plate height x width (mm)	Width between U-bolts (mm)
OW-15	Large Compact Duel Clamp 150mm	150	50	160	150 x 140	140	Most common fit for caravans
OW-14	Small Compact Duel Clamp 100mm	100 to 130	50	160	150 x 140	140	Most Jayco caravans (not the all-terrain/ adventurer)
OW-6	Large Duel Clamp 150mm	150	50-150	237	200 x 237	195	Alternative to OW15 where drawbar width is larger than 50mm. U-bolts from the back fit better.
OW-7	Small Duel Clamp 100mm	100	50-100	237	170 x 237	195	Ideal for boats (can go back-to-back with existing jockey wheel)
OW-8	Medium Duel Clamp 130mm	130	50-130	237	200 x 237	195	Ideal for boats (can go back-to-back with existing jockey wheel)
OW-5	X Small Duel Clamp 75mm	75	50-75	237	170 x 237	195	Ideal for boats (can go back-to-back with existing jockey wheel)
OW-18	Double Clamp Brack ALKO	NA	NA		150 x 140	NA	European & UK vans that use an Alko Chassis with plastic cover
OW-19	Optitec Offset Double Clamp	100 or 150	50-150		200 x 237 (150 mm plate) 170 x 237 (100 mm plate)	195	Used to get higher or lower (ie. in a carport) Raise or lower by 150mm Can be fitted to 150mm depth or 100mm depth
OW20	Gooseneck Dual clamp						Options to fit Zone, Snowy and Ezytrail - please contact us first or after order to confirm your measurements.
