All Terrain - Gooseneck Mounting Bracket

All Terrain - Gooseneck Mounting Bracket - Image 2

AT-G

All Terrain – Gooseneck Mounting Bracket

Name: All Terrain - Gooseneck Mounting Bracket
Brand: All Terrain
SKU: AT-G
Price: 540.00 AUD
Availability: InStock

$540.00

Van Type

Clear

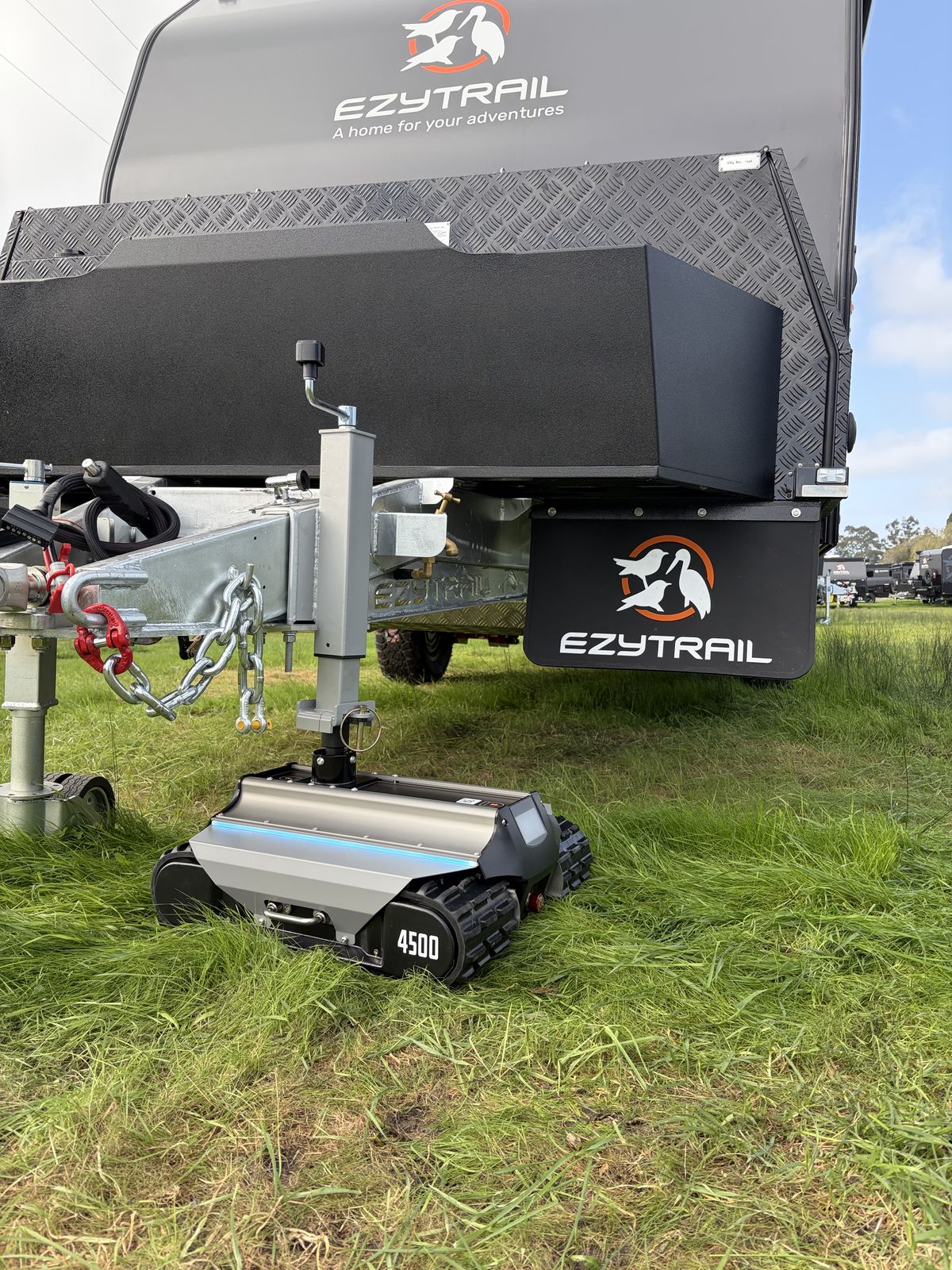

Compatible with both the All Terrain 2500 & 4500 models

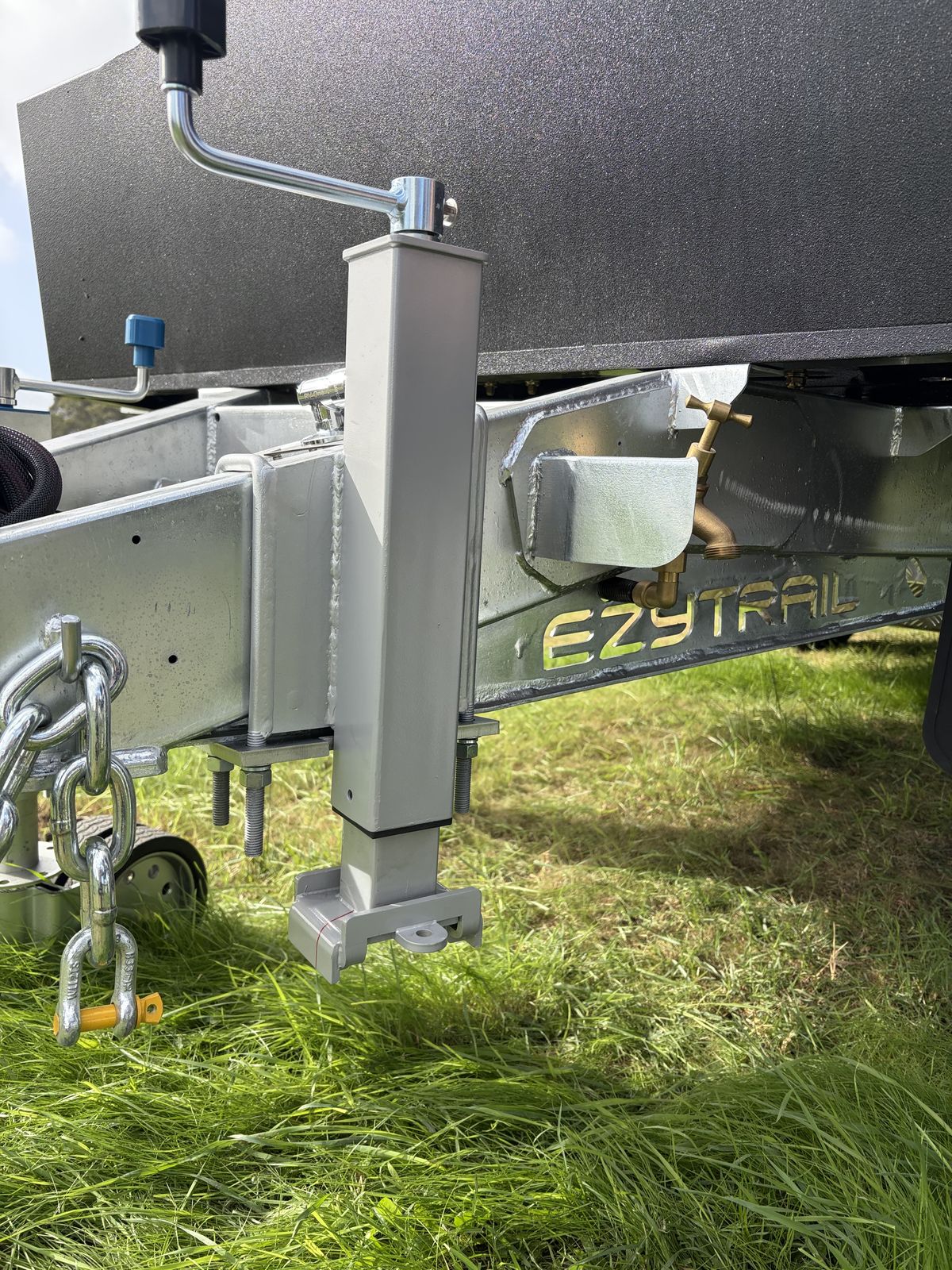

Suitable for angled or Gooseneck drawbars
Suitable for Zone RV, Design RV, Snowy River SRT 2026 Model, Snowy River SRH 2026 Model, Ezytrail Ceduna Mk 4, Snowy River SRT 2023-2025 Models, Snowy River SRH 2023-2025 Models and Signature Kakadu
If you have a gooseneck caravan not listed, please contact us so we can determine the best bracket for you: info@optitec.com.au or 0417367257

New All Terrain Movers are sold with a Standard or Universal clamp or Gooseneck mounting bracket included. Only purchase this if you require a second or replacement clamp.

User Guides

All Terrain User Manual

Free Shipping

2 Year Warranty

		To Fit		Clamp Dimensions			Additional Notes
Clamp	Name	Drawbar Height (mm)	DrawbarWidth (mm)	Total Width (mm)	Front Plate height x width (mm)	Width between U-bolts (mm)
OW-15	Large Compact Duel Clamp 150mm	150	50	160	150 x 140	140	Most common fit for caravans
OW-14	Small Compact Duel Clamp 100mm	100 to 130	50	160	150 x 140	140	Most Jayco caravans (not the all-terrain/ adventurer)
OW-6	Large Duel Clamp 150mm	150	50-150	237	200 x 237	195	Alternative to OW15 where drawbar width is larger than 50mm. U-bolts from the back fit better.
OW-7	Small Duel Clamp 100mm	100	50-100	237	170 x 237	195	Ideal for boats (can go back-to-back with existing jockey wheel)
OW-8	Medium Duel Clamp 130mm	130	50-130	237	200 x 237	195	Ideal for boats (can go back-to-back with existing jockey wheel)
OW-5	X Small Duel Clamp 75mm	75	50-75	237	170 x 237	195	Ideal for boats (can go back-to-back with existing jockey wheel)
OW-18	Double Clamp Brack ALKO	NA	NA		150 x 140	NA	European & UK vans that use an Alko Chassis with plastic cover
OW-19	Optitec Offset Double Clamp	100 or 150	50-150		200 x 237 (150 mm plate) 170 x 237 (100 mm plate)	195	Used to get higher or lower (ie. in a carport) Raise or lower by 150mm Can be fitted to 150mm depth or 100mm depth
OW20	Gooseneck Dual clamp						Options to fit Zone, Snowy and Ezytrail - please contact us first or after order to confirm your measurements.
