OW6 Double Clamp Bracket – 150mm - Image 2

OW-6

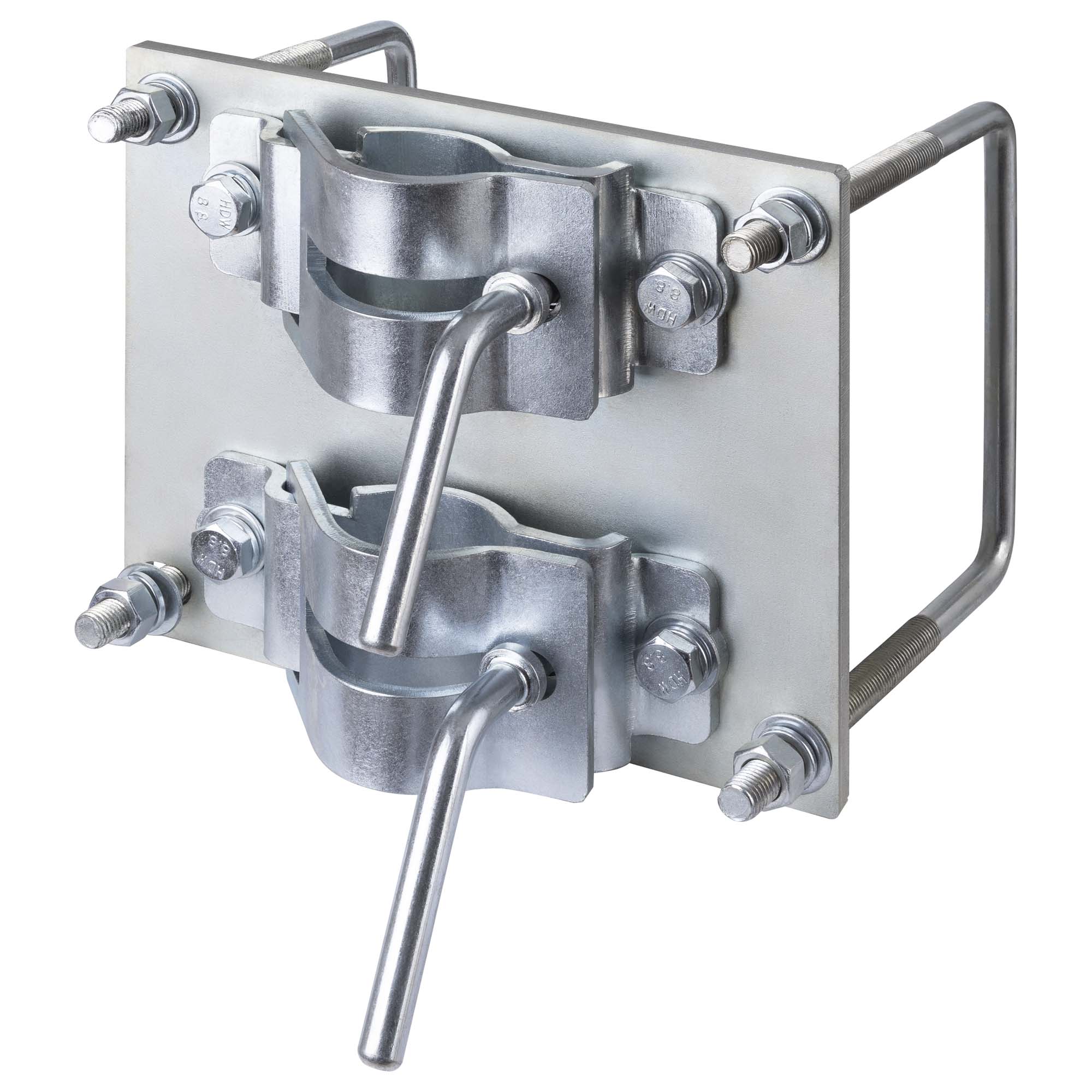

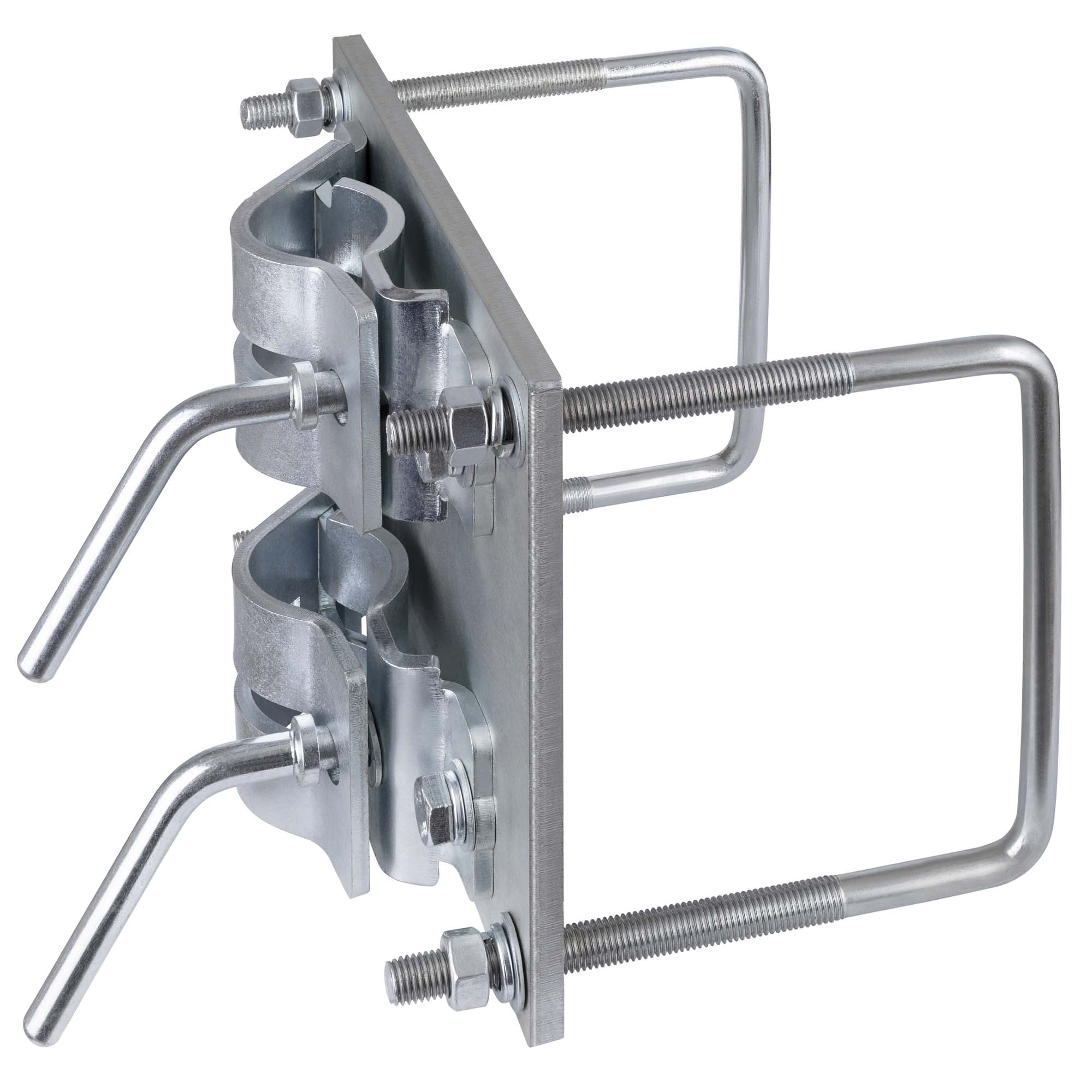

OW6 Double Clamp Bracket – 150mm

$160.00

Heavy Duty Double Clamp to secure the Optimover V3 to drawbars 150mm high and any width up to 150mm

Secure the Optimover to maximise performance when moving trailers over 1500kg
Can be fitted anywhere on the front drawbar
U-bolts connecting from the rear, no welding required
If your chassis width is 50mm you may prefer the compact OW-15 clamp

Made to fit:

Drawbar height: 150mm
Drawbar width: Between 50mm to 150mm

Dimensions of Clamp:

237mm width
200mm height
195mm width between u-bolts

Free Shipping

3 Year Warranty

Australian Engineered

Testimonials

Hear from Happy Movers

Steve H.

Great product, excellent service and quick delivery.

Terry B.

Hi purchased our Optitec Mover last week to manoeuvre our 2.6t dual axcel caravan from the narrow rear lane into our shed..worked a treat. So pleased to have our Mover..Highly recommend the Optitec..

Andrew W.

I contacted Optitec to see if they could help with fitting one of their Optimover remote control jockey wheel. I have an Ultimate Camper Trailer and the Optitec team were excellent and very helpful in designing a bracket that fitted the Ultimate drawbars. I have now completed the purchase and I’m very happy with the Optimover. It does exactly what it says on the website. A godsend as my garage is off a laneway and there is very little space. Thanks. Andrew

Matthew B.

Amazing service, helped me get the bracket I needed within hours, hand delivered to my door!! The optimover works amazing also!

		To Fit		Clamp Dimensions			Additional Notes
Clamp	Name	Drawbar Height (mm)	DrawbarWidth (mm)	Total Width (mm)	Front Plate height x width (mm)	Width between U-bolts (mm)
OW-15	Large Compact Duel Clamp 150mm	150	50	160	150 x 140	140	Most common fit for caravans
OW-14	Small Compact Duel Clamp 100mm	100 to 130	50	160	150 x 140	140	Most Jayco caravans (not the all-terrain/ adventurer)
OW-6	Large Duel Clamp 150mm	150	50-150	237	200 x 237	195	Alternative to OW15 where drawbar width is larger than 50mm. U-bolts from the back fit better.
OW-7	Small Duel Clamp 100mm	100	50-100	237	170 x 237	195	Ideal for boats (can go back-to-back with existing jockey wheel)
OW-8	Medium Duel Clamp 130mm	130	50-130	237	200 x 237	195	Ideal for boats (can go back-to-back with existing jockey wheel)
OW-5	X Small Duel Clamp 75mm	75	50-75	237	170 x 237	195	Ideal for boats (can go back-to-back with existing jockey wheel)
OW-18	Double Clamp Brack ALKO	NA	NA		150 x 140	NA	European & UK vans that use an Alko Chassis with plastic cover
OW-19	Optitec Offset Double Clamp	100 or 150	50-150		200 x 237 (150 mm plate) 170 x 237 (100 mm plate)	195	Used to get higher or lower (ie. in a carport) Raise or lower by 150mm Can be fitted to 150mm depth or 100mm depth
OW20	Gooseneck Dual clamp						Options to fit Zone, Snowy and Ezytrail - please contact us first or after order to confirm your measurements.
