OW-35

OW35 Optimover Bracket for DO-35 Hitch

Name: OW35 Optimover Bracket for DO-35 Hitch
Brand: Optitec
SKU: OW-35
Price: 345.00 AUD
Availability: InStock

$345.00

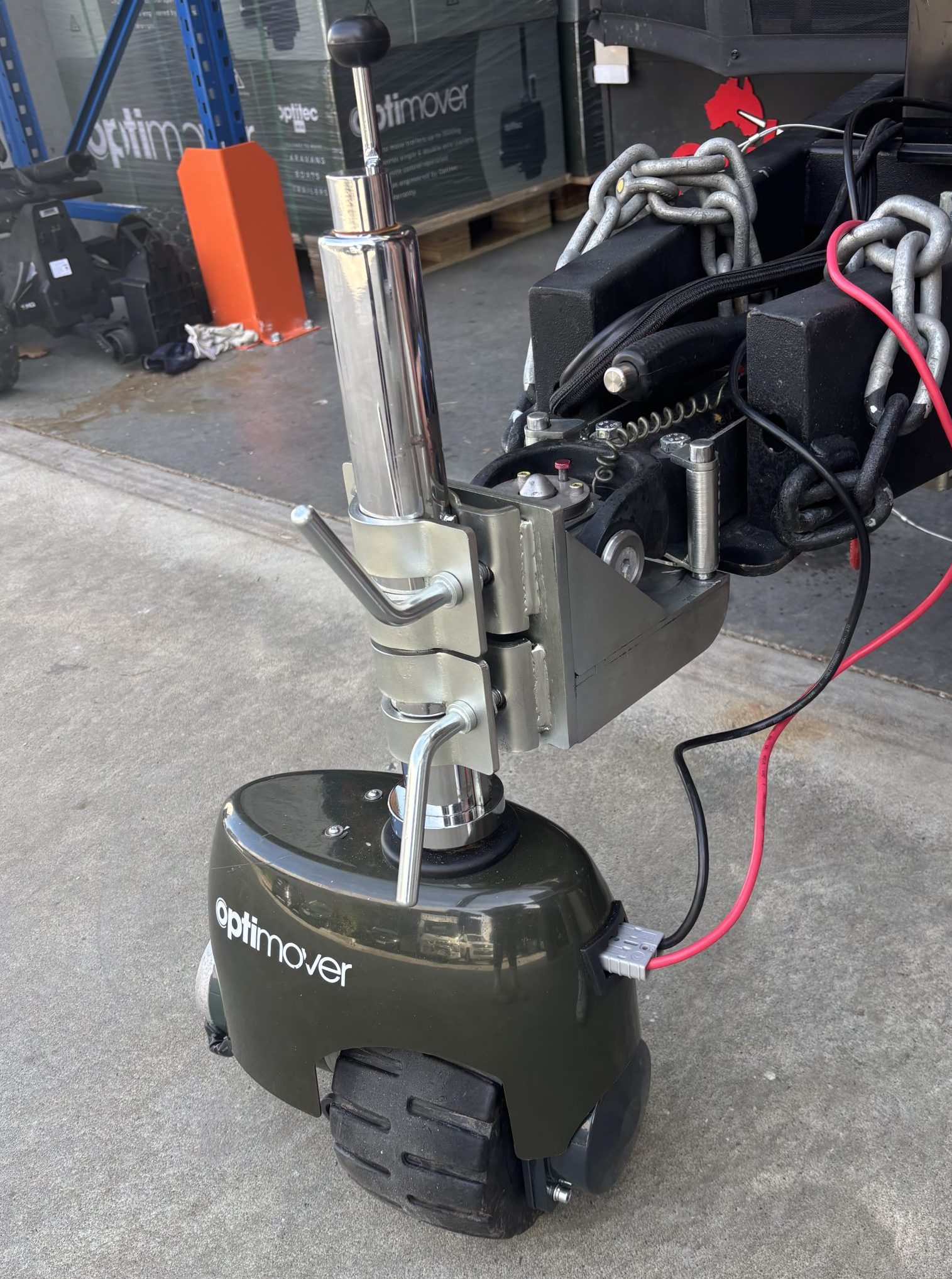

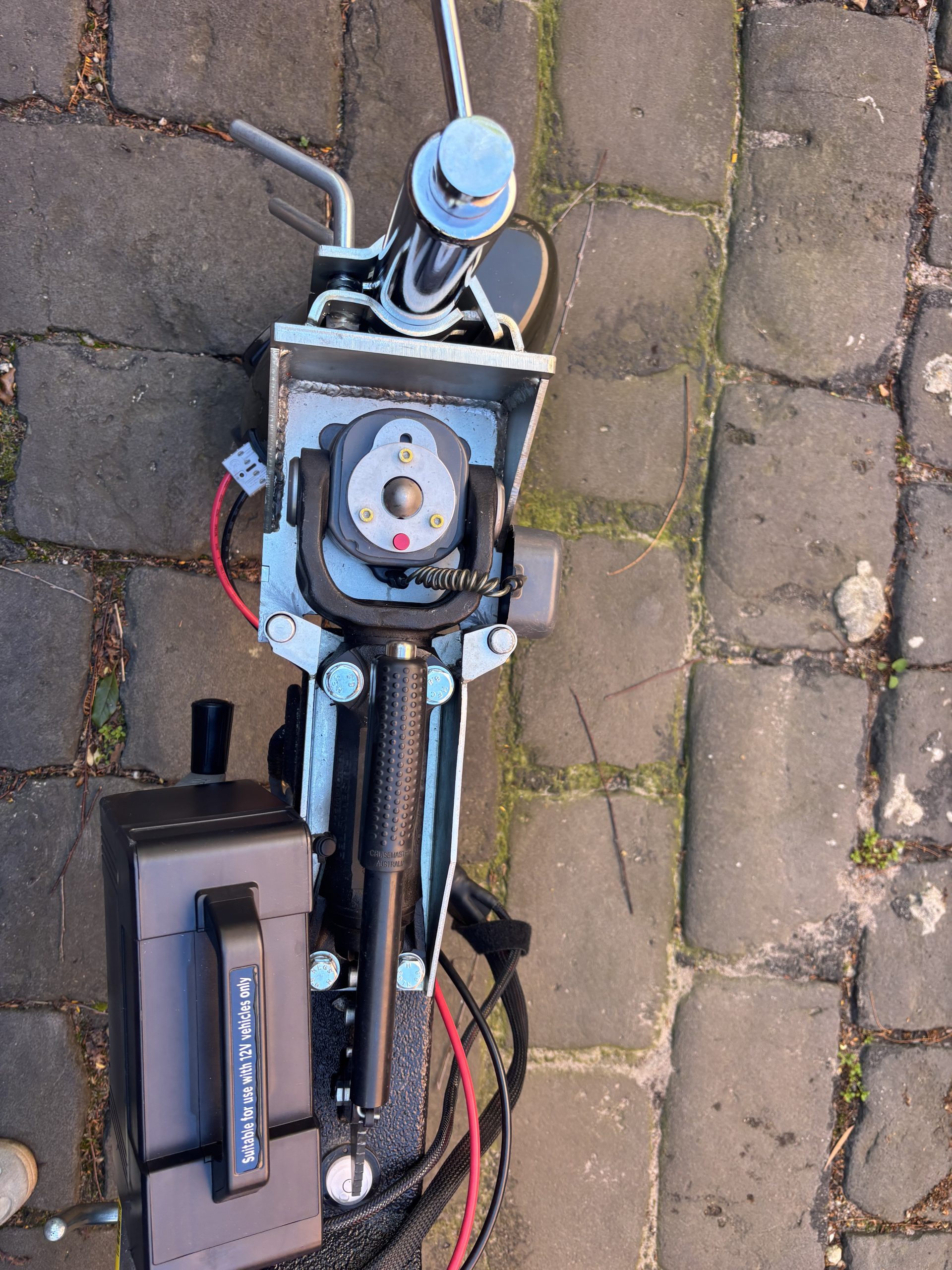

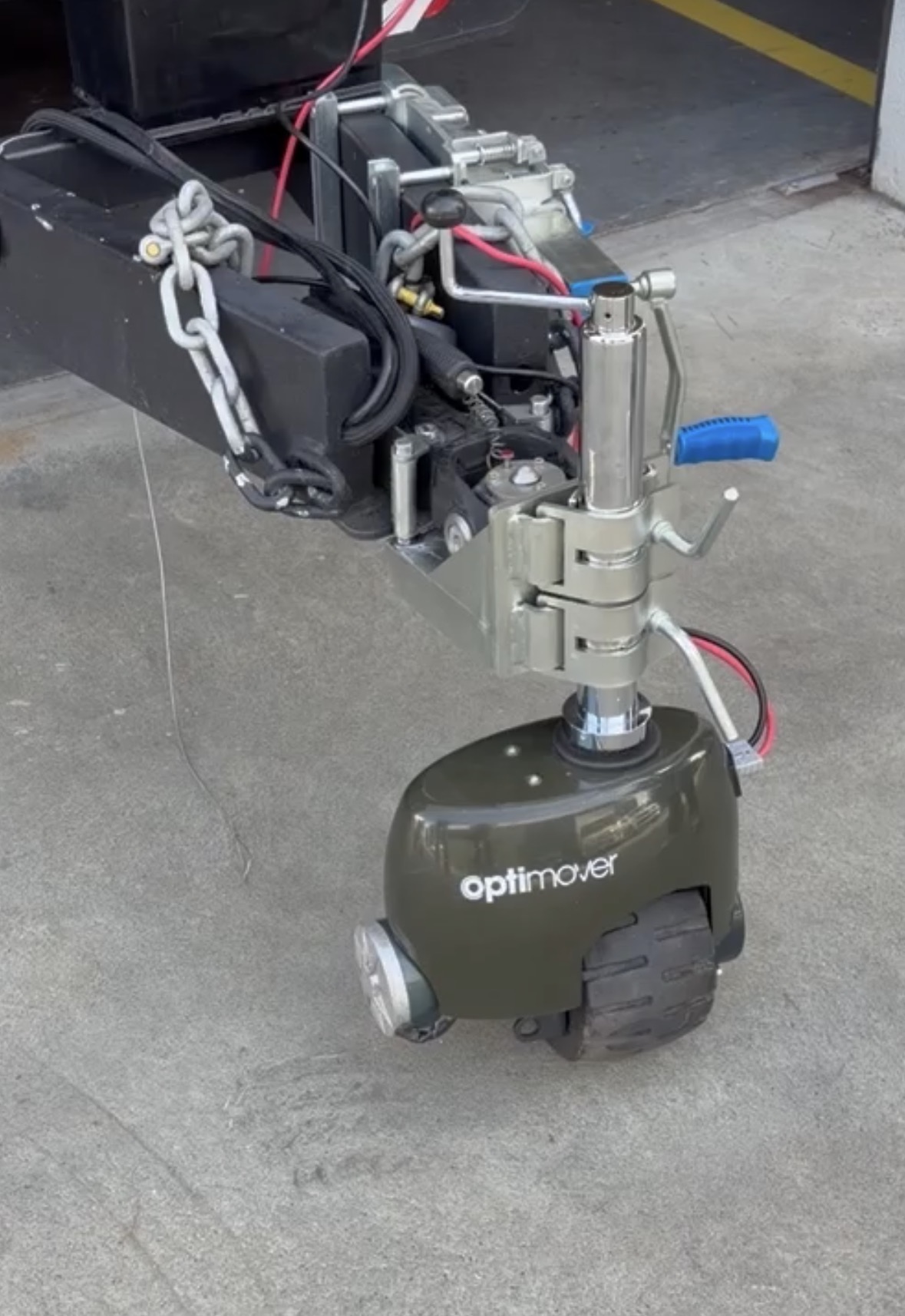

DO-35 Bracket for Optimover

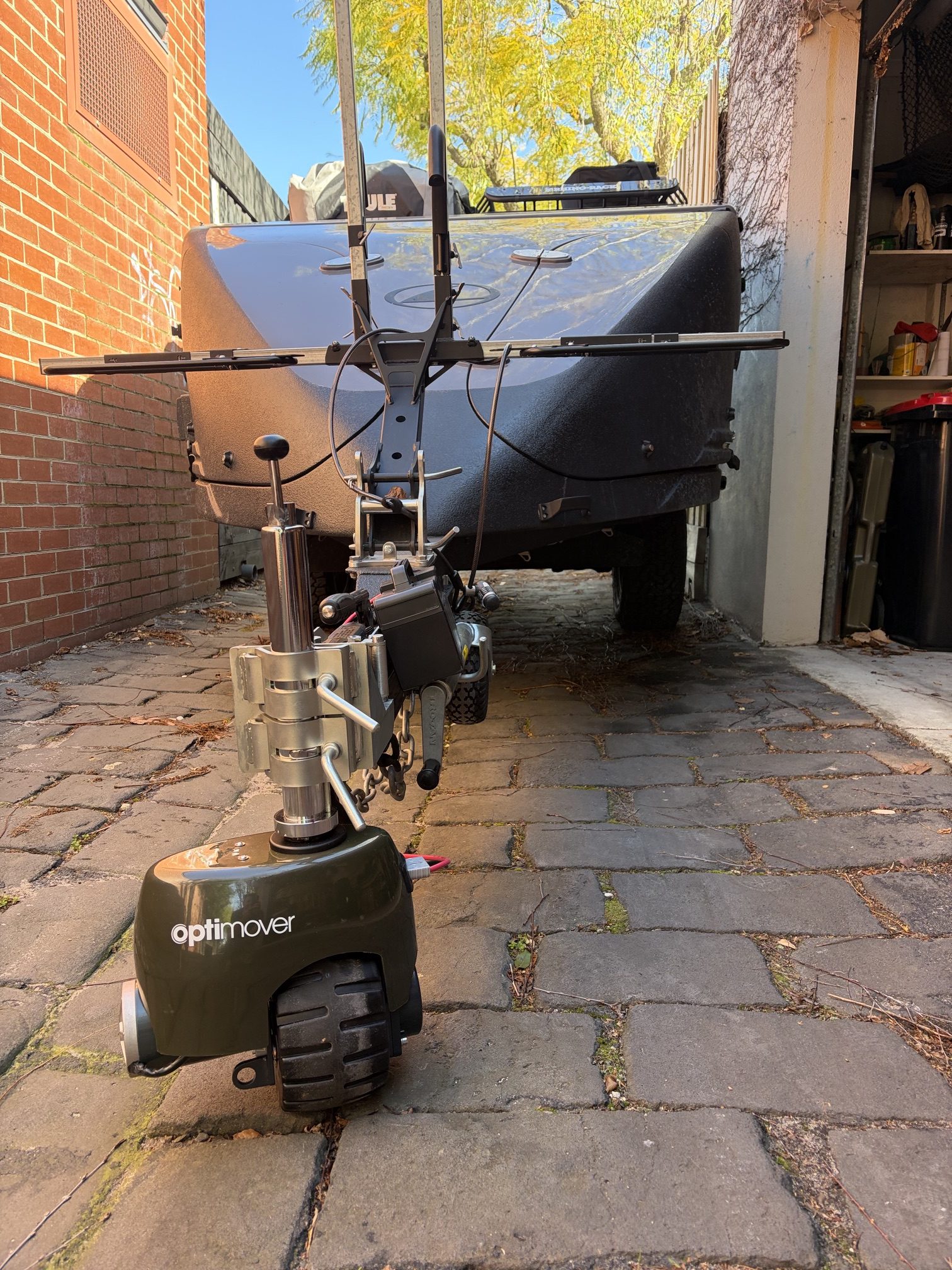

The DO-35 Bracket is designed for caravans fitted with a DO-35 hitch where none of our standard Optimover brackets suit the drawbar – for example, Ultimate campers.

Only choose this bracket if our other brackets don’t fit. If you’re unsure, contact us before ordering and we’ll help confirm the right bracket for your van.

Why this bracket?
A DO-35 hitch is designed to articulate. This bracket mounts the Optimover so there’s no articulation from the DO-35 while you’re moving your caravan, giving you stable, controlled movement.

Installation requirement

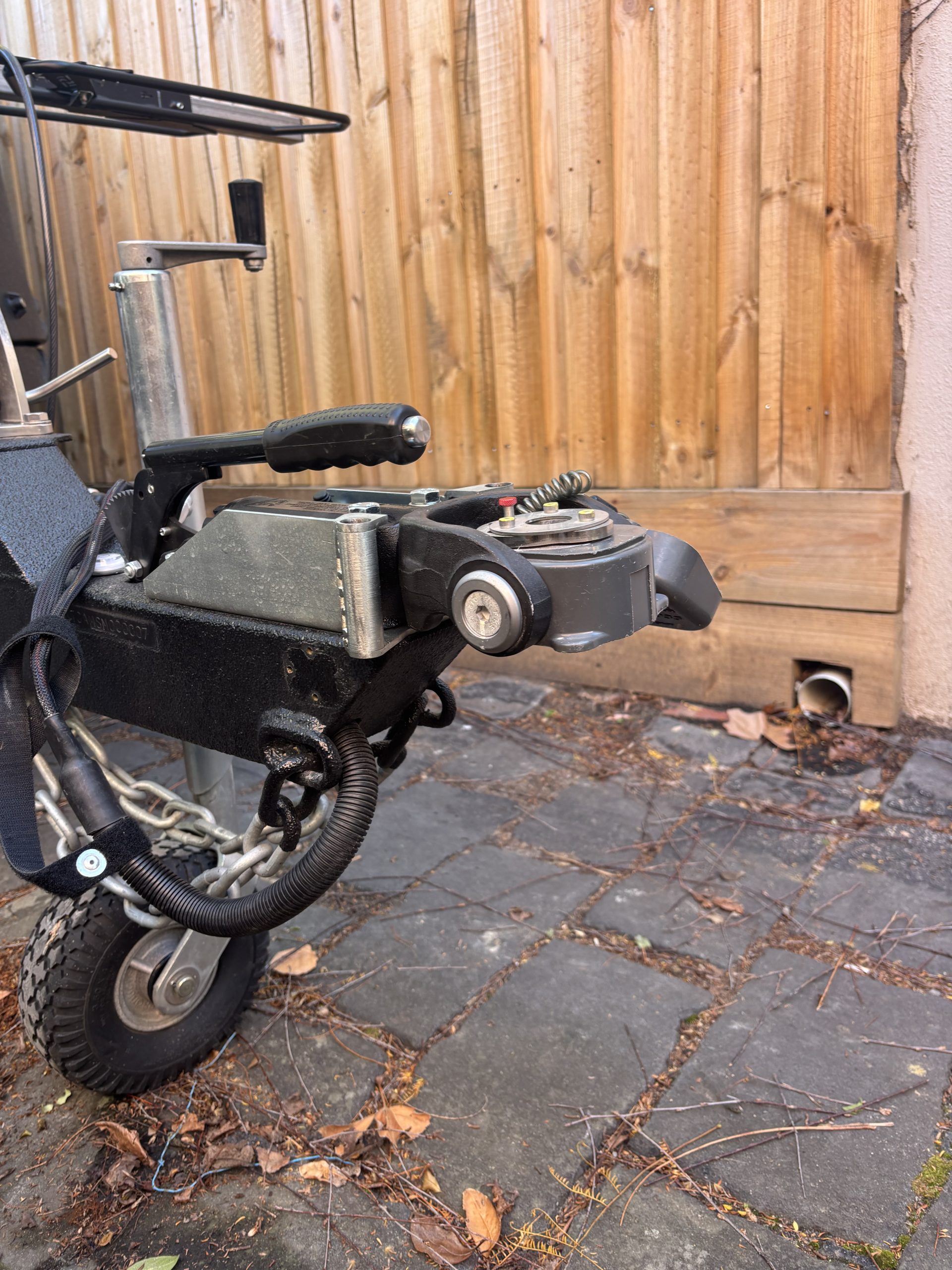

The bracket includes an underplate that bolts on underneath your DO-35 hitch, using the same bolts that hold the hitch in place. To fit it, you must be able to remove your DO-35 hitch bolts and refit them with the underplate in position.

What’s included

DO-35 Bracket
Underplate
DO-35 Cruisemaster pin

Suitability

Caravans with a DO-35 hitch
Recommended for caravans with a loaded weight under 3T when being moved
For use when standard Optimover brackets don’t fit your drawbar

User guides

Free Shipping

3 Year Warranty

Australian Engineered

You may also like…

Optimover V3 Remote Control Jockey Wheel

Rated 5 out of 5

$2,625.00

Move any caravan, boat or trailer up to 3500kg

Add to cart

Optimover Carry & Storage Bag

$140.00

Thickly padded storage bag on wheels to protect, store and move your Optimover

Add to cart

Spare Remote Control (White)

$60.00

A spare or replacement remote for Optimovers currently using a white remote control.

Add to cart

Testimonials

Hear from Happy Movers

Steve H.

Great product, excellent service and quick delivery.

Terry B.

Hi purchased our Optitec Mover last week to manoeuvre our 2.6t dual axcel caravan from the narrow rear lane into our shed..worked a treat. So pleased to have our Mover..Highly recommend the Optitec..

Andrew W.

I contacted Optitec to see if they could help with fitting one of their Optimover remote control jockey wheel. I have an Ultimate Camper Trailer and the Optitec team were excellent and very helpful in designing a bracket that fitted the Ultimate drawbars. I have now completed the purchase and I’m very happy with the Optimover. It does exactly what it says on the website. A godsend as my garage is off a laneway and there is very little space. Thanks. Andrew

Matthew B.

Amazing service, helped me get the bracket I needed within hours, hand delivered to my door!! The optimover works amazing also!

		To Fit		Clamp Dimensions			Additional Notes
Clamp	Name	Drawbar Height (mm)	DrawbarWidth (mm)	Total Width (mm)	Front Plate height x width (mm)	Width between U-bolts (mm)
OW-15	Large Compact Duel Clamp 150mm	150	50	160	150 x 140	140	Most common fit for caravans
OW-14	Small Compact Duel Clamp 100mm	100 to 130	50	160	150 x 140	140	Most Jayco caravans (not the all-terrain/ adventurer)
OW-6	Large Duel Clamp 150mm	150	50-150	237	200 x 237	195	Alternative to OW15 where drawbar width is larger than 50mm. U-bolts from the back fit better.
OW-7	Small Duel Clamp 100mm	100	50-100	237	170 x 237	195	Ideal for boats (can go back-to-back with existing jockey wheel)
OW-8	Medium Duel Clamp 130mm	130	50-130	237	200 x 237	195	Ideal for boats (can go back-to-back with existing jockey wheel)
OW-5	X Small Duel Clamp 75mm	75	50-75	237	170 x 237	195	Ideal for boats (can go back-to-back with existing jockey wheel)
OW-18	Double Clamp Brack ALKO	NA	NA		150 x 140	NA	European & UK vans that use an Alko Chassis with plastic cover
OW-19	Optitec Offset Double Clamp	100 or 150	50-150		200 x 237 (150 mm plate) 170 x 237 (100 mm plate)	195	Used to get higher or lower (ie. in a carport) Raise or lower by 150mm Can be fitted to 150mm depth or 100mm depth
OW20	Gooseneck Dual clamp						Options to fit Zone, Snowy and Ezytrail - please contact us first or after order to confirm your measurements.
